Procedures
- Ultrasound-guided CVC line implantation
- External landmark catheterization for CVC lines
- Insertion skills for PermCath, Hickman catheters and CVP-Cath
- Port access and care
Central Venous Catheterization and Port Access Training Platform – Hand Pump Version
CVC-B01
This versatile platform features a modular design, enabling functional expansion with accessories and reducing costs by replacing consumables only when needed. It offers dual pulsatility simulation via a hand pump or Electro-hydraulic Pulse Generator for realistic training. A durable, self-healing muscle pad supports repeated use, ensuring cost-effective and high-quality practice.
Hand Pump Version. Applicable for ultrasound-guided CVC insertion and Port-A. Includes a portable case, upper body base, and all CVC spare parts (CVC-S01 to CVC-S08).
Quantity
Features
- The neck muscle pad features a clavicle skeleton design, allowing practitioners to locate the needle insertion point through palpation and further enhance accuracy with ultrasound guidance.
- The enhanced ultrasound-compatible material provides better visibility of vascular positions under ultrasound guidance.
- The self-healing neck muscle pad supports up to 50 punctures.
- The aortic pressure and heart rate can be created and adjusted by the hand pump.
- Adding fake blood to the water tank and neck vessel set (SVC) creates a more realistic training environment.
- Under-skin tunneling is applicable on this platform.
- The product comes with pre-set grooves, allowing for the extension and addition of modules for practicing PICC procedures.
- Modular design leads to cost-effective training.
- Realistic appearance provides trainees with more immersive experiences.

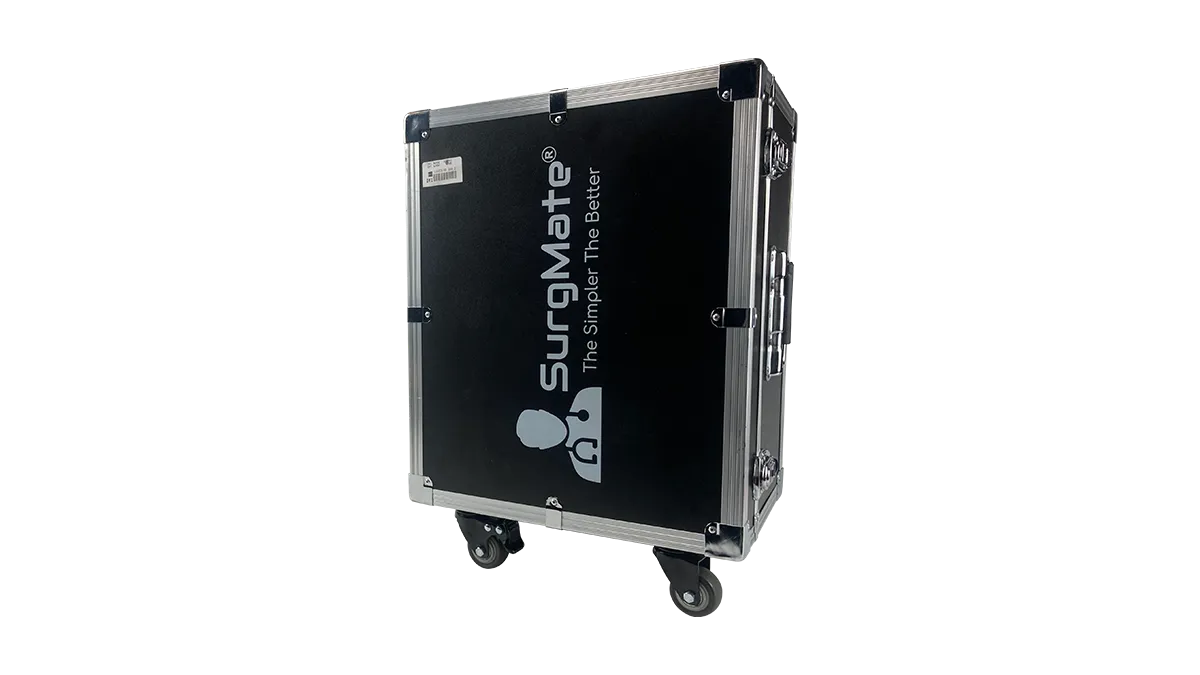

- The platform can be carried out using a portable case.
Specifications
- Net Dimensions (L×W×H): 37.5 cm × 29 cm × 18 cm
- Net Weight: 3.5 kg
- Gross Dimensions (L×W×H): 54 cm × 37.5 cm × 27 cm
- Gross Weight: 9.5 kg
Spare parts
Replaceable components to keep the platform ready for repeated training sessions.
Quantity
CVC-S01

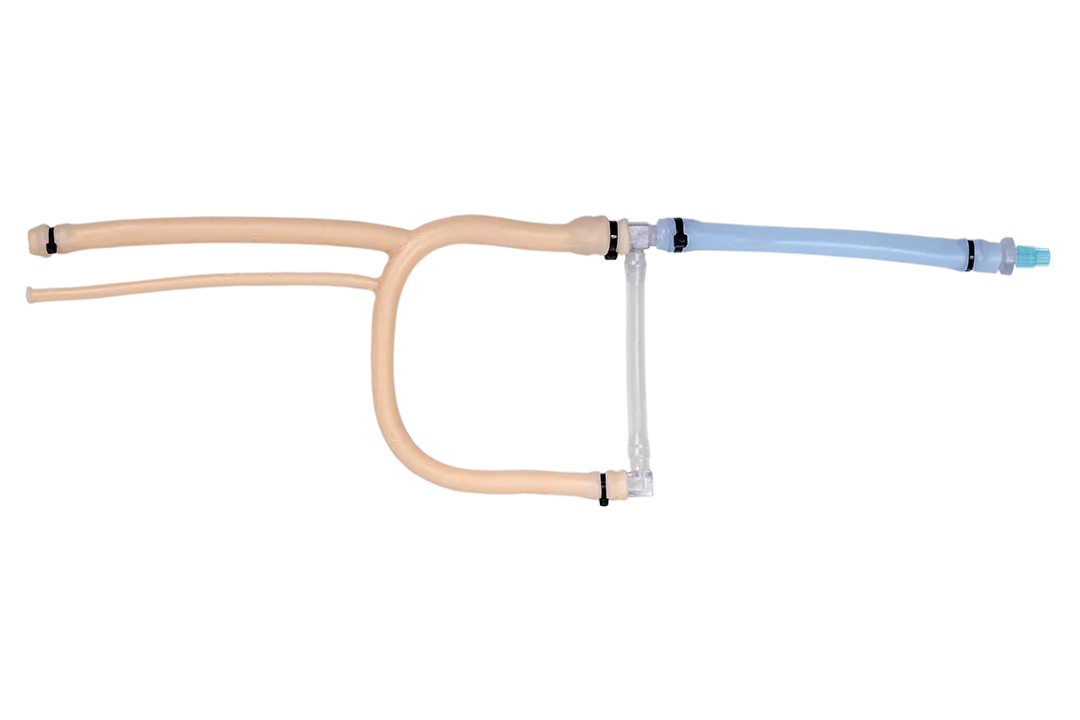

Neck vessel set — SVC.
Quantity
CVC-S02
Neck muscle pad.
Quantity
CVC-S02A
Pre-tunneled neck muscle pad.
Quantity
CVC-S03
Neck muscle base.
Quantity
CVC-S04
Water tank.
Quantity
CVC-S05

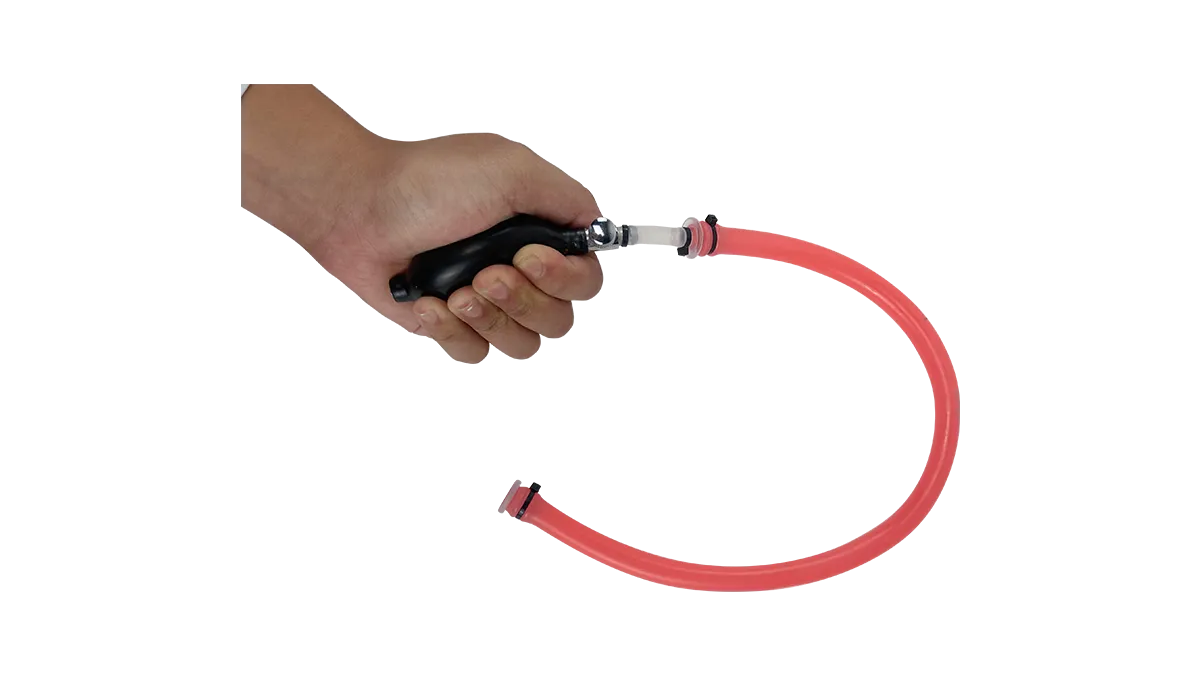

Hand pump — backup for creating pulsation manually.
Quantity
CVC-S06
75 cm carotid artery for hand pump.
Quantity
CVC-S07
Extension tubing.
Quantity
CVC-S08
Connection tubing.
